RIX RIP-3C (Quick View)
| Best For | Night Vision Rifle Builds, Hog & Predator Hunting, Civilian Training, Defensive Use |
| Laser Class | Green Visible Laser + Class 1 IR Pointer + VCSEL IR Illuminator |
| Mounting | Factory QD 1913 Picatinny Mount (Return-to-Zero, Tool-Free) |
| Key Feature | Triple-Beam Output: Visible Green, IR Pointer & IR Flood in a Compact, Rugged Housing |
RIX RIP-3C IR Laser Review – Struggling to find a dual-laser system that doesn’t require a military ID or cost more than your rifle? Most civilian-legal IR laser setups are limited to the budget tier, featuring weak IR beams, plastic mounts, or controls better suited for airsoft than real-world use.
The RIX RIP-3C changes that.
This compact, civilian-legal laser sight features both a daylight-visible green laser and an infrared (IR) laser in a durable, aluminum housing designed for real-world rifle applications. With tool-free zeroing, ambidextrous rear controls, and a low-profile form factor, it fits perfectly on suppressed ARs, short-barreled builds, and night vision–capable patrol rifles — all without crossing into ITAR-restricted territory.
Unlike bargain-tier laser units that shift zero or wash out under recoil, the RIP-3C maintains its accuracy and provides solid IR performance up to 300 meters, depending on your illuminator setup. It’s also remote switch–ready and clamps to any standard 1913 rail, giving you flexible control options for any tactical rifle platform.
At Voodoo Firearms, we’ve tracked this unit’s growing rep through field tests, owner reviews, and demo runs in low-light training environments. It consistently outperforms most competitors in the same tier, making it one of the best mid-tier IR aiming solutions currently available to civilian buyers.
📜 Quick Navigation
RIX RIP-3C Specifications
| Feature | Details |
|---|---|
| Laser Type | Green Visible Laser (Class IIIb ≤30 mW, 520 nm) + IR Laser (Class I ≤35 mW, 850 nm) |
| White Light | ✅ Yes – 120 Lm |
| IR Illuminator | VCSEL IR Flood (5–115 mrad variable divergence) |
| Housing Material | 6061-T6 Aluminum, Type III Hardcoat Anodized |
| Mounting | Quick-Detach 1913 Picatinny (Return-to-Zero, Tool-Free) |
| Activation | Ambi Rear Toggle + SureFire-Compatible Remote Port |
| Battery | 1× CR123A Lithium (included) |
| Battery Life | Up to 9 hours (varies by mode) |
| Laser Visibility | Green laser daylight-visible to ~100 yd; IR effective past 250 m under NVGs |
| Adjustments | 0.2 mrad per click (Windage/Elevation) |
| Weight | ~8 oz (with battery & mount) |
| Dimensions | 4.1″ × 2.3″ × 1.5″ (L × W × H) |
| Water Resistance | IPX8 (Submersible up to 20 meters) |
| Operating Temp | –40 °C to +65 °C |
| MSRP | $999 |
| Best Use Case | Night Vision CQB, Suppressed ARs, Passive Aiming |
🆚 Comparison Table: RIX RIP-3C vs SureFire XVL2-IRC vs L3 ATPIAL-C
| Feature | RIX RIP-3C IR Laser Sight | SureFire XVL2-IRC | L3 ATPIAL-C |
|---|---|---|---|
| Laser Type | Visible green + IR laser (Class IIIa) | Visible green + IR laser + IR illuminator | Visible red or green + IR pointer + IR illuminator |
| Built-in White Light? | ✅ Yes – 120 Lm | ✅ Yes – 400 lm white light | ❌ No |
| Night Vision Compatible? | ✅ Yes – IR pointer for NVG use | ✅ Yes – IR laser + IR illuminator | ✅ Yes – IR laser + IR illuminator |
| IR Illuminator Power | 850±15nm, 35mW，Class 3a | IR illuminator – Class I (≤0.7 mW) | Class I (≤0.7 mW), fixed flood |
| Mount Type | Picatinny QD mount | Integrated rail clamp | Standard MIL-SPEC 1913 rail clamp |
| Activation | Top button + mode selector + tape switch port | Toggle selector + pressure switch | Fire button + dual remote ports |
| Battery Type | 1× CR123A | 1× CR123A | 1× CR123A |
| Battery Life | ≈8 hrs (IR only) | ~1.5 hrs (IR + WL active), ~4 hrs (laser only) | ~6 hrs (IR), varies by usage |
| Housing Material | 6061‑T6 Aluminum, hard anodized | High-strength aerospace aluminum | 7075‑T6 Aircraft Aluminum |
| Zeroing Adjustments | Tool-free turrets (½ MOA) | Tool-adjustable (windage/elevation) | Tool-adjustable with tactile clicks |
| Daylight Visible? | ✅ Yes (~100 yd green laser) | ✅ Yes (~50 yd green) | ✅ Yes (green/red option) |
| Waterproof Rating | IP67 – Water resistant | IPX8 – Submersible | IPX8 – Submersible to 20m |
| Weight | ≈8.6 oz (w/battery & mount) | ≈7.9 oz (w/battery) | 7.5 oz (213 g) |
| Size (L×W×H) | 3.6″ × 2.2″ × 1.6″ | 3.5″ × 2.4″ × 1.6″ | 4.6″ × 2.8″ × 1.6″ |
| MSRP | $999 | $1,549 | $2,359 |
| Best Use Case | Budget-friendly NVG rifle builds | Dual-spectrum LE/MIL use with WL/IR | Reliable IR laser for civilian NVG use |
| Buy Link | 🔗 Check Price |
🔗 Check Price |
🔗 Check Price |
Check out our full list of the Best Lasers for AR-15 (Ultimate 2025 Guide)
🛡️ Why We Like the RIX RIP-3C IR Laser
- 💥 Dual-Beam Output in a Compact Package – Combines a daylight-visible green laser with a Class 1 IR pointer, perfect for passive night vision use without breaking the bank.
- 💥 Tool-Free Zeroing – Windage and elevation turrets require no tools and offer tactile ½ MOA adjustments, making on-the-fly zeroing fast and precise.
- 💥 QD Mount + Tape Switch Ready – Installs instantly on any Picatinny rail and supports remote pressure pads for streamlined activation under stress.
- 💥 Built for Real-World Use – Machined from 6061-T6 aluminum, hard-anodized, and IP67-rated for rugged durability in wet, dusty, or high-impact conditions.
Bottom line: The RIX RIP-3C punches well above its price point. It delivers dependable IR capability and visible laser performance in a compact, no-frills unit that’s ready for civilian night vision rifle builds. Whether you’re running NODs or just preparing for low-light conditions, it’s one of the best IR lasers available for under $1,000.
RIX RIP-3C IR Laser Review
Key Features:

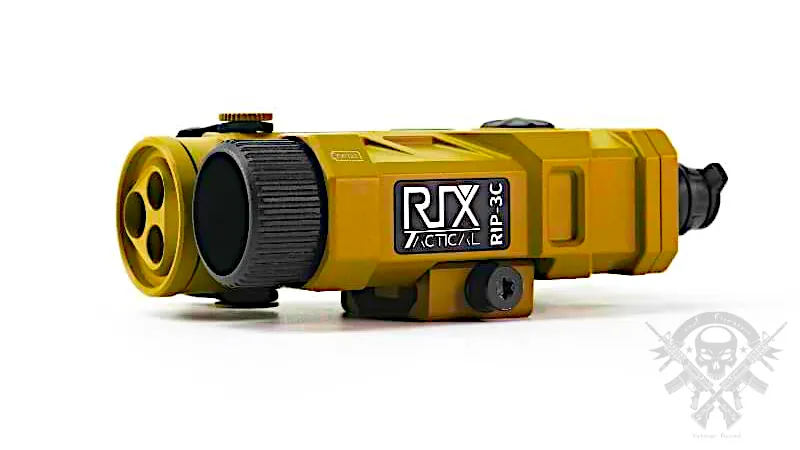

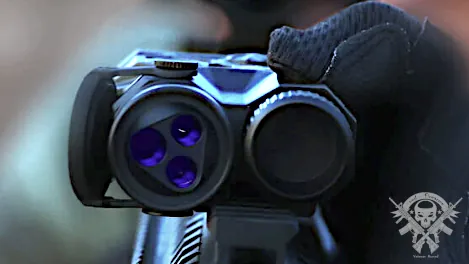

- Triple-Beam Configuration – Features a daylight-visible green laser, Class 1 IR pointer, and a powerful VCSEL-based IR illuminator for full-spectrum targeting in all light conditions
- Dual-Switch Control – Supports both a built-in top toggle and SureFire-compatible ModButton input for precise, mission-adaptable laser activation.
- Tool-Free Adjustments – Windage and elevation turrets offer tactile, toolless ½ MOA adjustments for fast zeroing in the field.
- Mode Selector Switch – Streamlined rotary switch toggles between VIS laser, IR pointer, or OFF with glove-friendly tactile feedback.
- Rugged 6061-T6 Housing – Type III hard-anodized aluminum body built to endure recoil, drops, and harsh environments; IP67 rated for water and dust resistance
- Quick-Detach Mount – Factory QD Picatinny mount ensures rock-solid lockup with repeatable zero, even under suppressor gas and recoil.
- Built for Civilian NVG Use – Ideal for suppressed ARs, night vision training, nighttime pest control, or home defense with passive aiming capability.
Most budget laser systems claim to be “NVG-capable,” but the RIX RIP-3C actually delivers on that promise. No underpowered IR. No sloppy turrets. No airsoft-tier housings pretending to be serious gear.
What you get is a purpose-built IR aiming system that holds zero, mounts solid, and runs reliably under night vision. It’s streamlined, intuitive, and rugged enough for real-world civilian use—whether you’re training with NODs, hunting hogs at night, or securing your perimeter under blackout conditions.
Here’s a quick breakdown of what we like and dislike about the RIX RIP-3C IR Laser:
✅ Pros
- Triple-Beam Integration – Combines a daylight-visible green laser, Class 1 IR pointer, and 35 mW VCSEL IR flood illuminator for full-spectrum use
- Simple Control Interface – Includes a top-mounted toggle switch plus remote input port for ModButton or standard tape switches
- Tool-Free Zeroing – Built-in ½ MOA turrets allow fast, no-tool windage and elevation adjustments for VIS and IR lasers
- Rugged Housing – 6061-T6 aluminum body with Type III anodizing is shock-resistant and IP67-rated against dust and moisture
- Solid Mounting System – Factory QD Picatinny mount ensures repeatable zero and a secure lockup under recoil
- Civilian-Legal IR Flood – One of the only NVG laser systems under $1,000 that includes both an IR pointer and IR illuminaton
- Compact Form Factor – Low-profile design fits easily on suppressed builds without interfering with optics or lights
❌ Cons
- No White Light – Integrated illumination is IR-only; requires separate visible light for target ID
- Manual Divergence Control – IR illuminator beam spread is adjustable but not as quick or fine-tuned as higher-end military systems
- No Dual-Laser Fire Mode – Cannot simultaneously activate VIS and IR for transition
Is the RIX RIP-3C IR Laser Worth It?
If you’re a civilian NVG user looking for a compact, rugged IR laser and illuminator setup without spending $ 2,000+, the RIX RIP-3C absolutely delivers.
You’re getting a true triple-laser system: a daylight-visible green laser, a Class 1 IR pointer, and a 35 mW VCSEL-based IR flood illuminator, all packed into a hard-anodized 6061-T6 aluminum body with IP67 environmental sealing. It’s engineered for passive night vision aiming, suppressed rifle setups, and real-world readiness, without MIL/LE restrictions or clone-tier compromises.
Unlike repurposed airsoft-tier lasers or underpowered import optics, the RIP-3C is purpose-built for NVG integration. It holds zero, includes remote switch support, and runs cleanly with any standard ModButton setup.
What Sets It Apart?
The standout feature of the RIP-3C is that it brings full-featured IR capability into the civilian market, without compromised specs or exorbitant pricing.
Most systems under $1K offer only an IR pointer. The RIP-3C takes it a step further with a VCSEL IR flood illuminator, tool-free zeroing, and a QD mount that actually holds up under suppressed fire. The rotary mode selector is glove-friendly, the controls are responsive, and the divergence on the IR illuminator can be adjusted for room work or longer-range passive aiming.
You’re getting real IR functionality, not stripped-down gimmicks—and it fits cleanly under LPVOs, red dots, or offset light setups without throwing off your rifle’s balance.
For civilian shooters running NODs, training for nighttime readiness, or hunting in blackout conditions, the RIP-3C is one of the only triple-beam options at this price point—and it holds its own against units twice the cost.
Personal Experience
We mounted the RIX RIP-3C on a suppressed 11.5″ SBR and ran it through multiple nighttime drills under NODs. Both the green visible laser and IR pointer maintained their zero throughout live fire, even after exposure to heat, sling tension, and aggressive transitions.
The IR illuminator’s VCSEL flood was surprisingly effective—wide enough for clearing rooms but focused enough to avoid bloom when using Gen 3 tubes. Adjusting beam divergence was slower than on higher-end units, but it was effective, and visibility at distances of 100 yards and beyond was solid.
The included QD mount was tight, with no visible shift after firing over 300 rounds. Activation via a ModButton was responsive and consistent, with zero lag or missed presses. For a sub-$1K system, this thing punches way above its class.
It’s ideal for:
- Night Vision Rifle Setups – Perfect for civilian NODs, with IR pointer + flood for passive aiming at realistic distances
- Suppressed AR Platforms – Low-profile and balanced for use with cans, without interfering with optics, lights, or tape switches
- Home Defense or Rural Security – Gives you reliable, low-signature illumination and IR aiming capability when visibility and discretion matter
Why We Like It:
The RIX RIP-3C isn’t a gimmick laser or clone-tier toy. It’s a civilian-legal IR laser + flood system that actually performs under real-world conditions, without breaking the bank.
You’re getting:
- Triple Laser Output – Green visible laser, Class 1 IR pointer, and 35 mW VCSEL IR flood all in one
- Dual Activation – Built-in toggle switch + ModButton port for intuitive IR/VIS switching
- 6061-T6 Aluminum Housing – Hard-anodized, IP67 sealed, and ready for suppressed recoil, drops, and environmental abuse
- NVG-Optimized Design – Passive aiming ready, with clean divergence, tool-free zeroing, and a footprint that blends seamlessly into AR builds
If you’re building a serious night vision rifle without LE credentials or military access, the RIX RIP-3C is one of the most capable and affordable full-featured IR systems available.
RIX RIP-3C IR Laser Setup & Zeroing
Mounting and zeroing the RIX RIP-3C is straightforward, but dialing it in properly is crucial for achieving consistent performance under night vision conditions. While it’s built for civilian use, the RIP-3C offers serious capability, and like any laser system, precision matters.
Here’s how to set it up the right way:
-

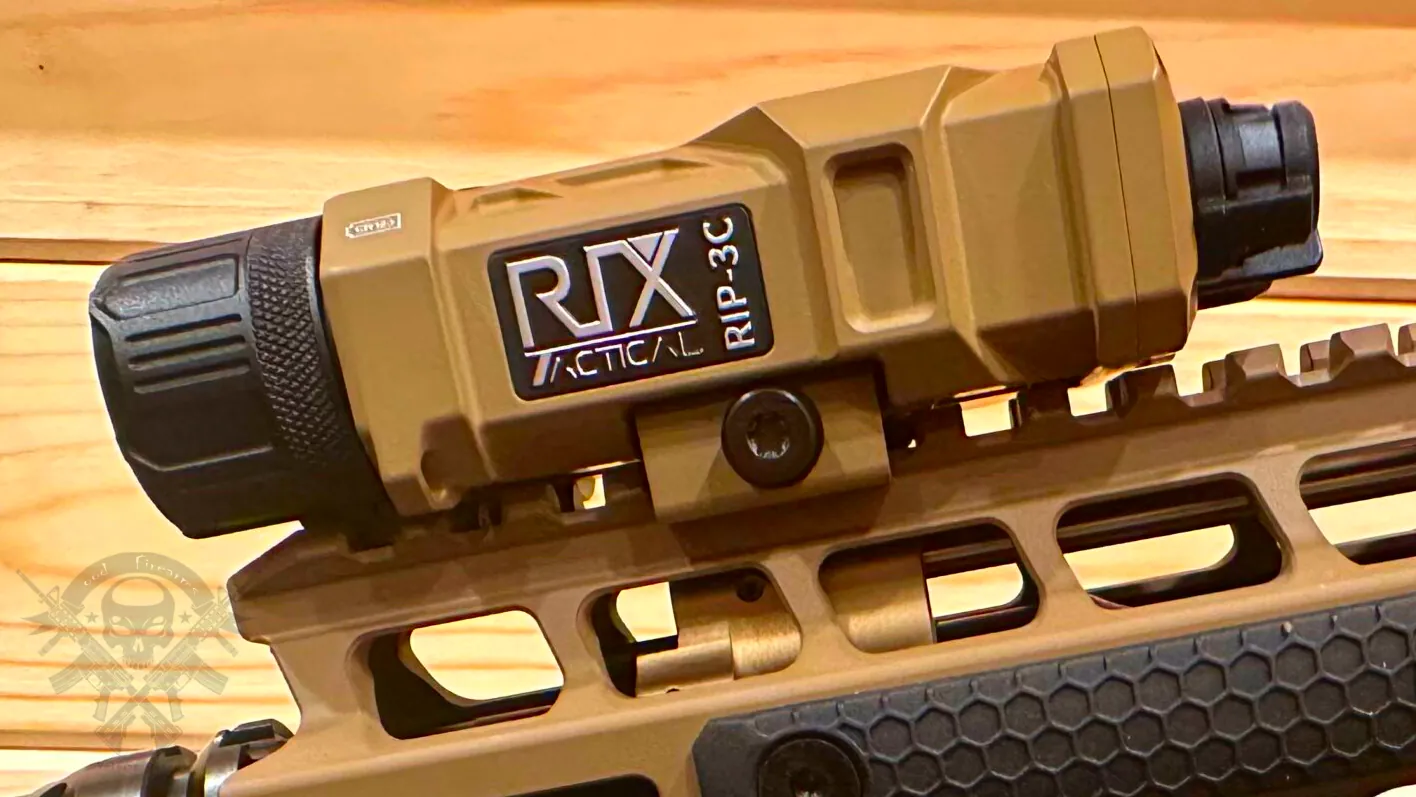

Mounting: Use the included factory QD Picatinny mount to attach the RIP-3C securely near the front third of your rifle’s handguard. This placement keeps the green laser, IR pointer, and VCSEL illuminator aligned for optimal use with suppressors, lights, or backup sights. Be sure the mount locks fully into the rail — any looseness or flex can cause beam shift under recoil.
-
Laser Adjustment: Zero the visible green laser during the day by matching your optic’s point of aim at a known distance. The IR pointer and IR illuminator are co-aligned and adjusted using the tool-free turrets, which provide tactile ½ MOA click adjustments for both windage and elevation. Under night vision, fine-tune the IR pointer’s zero at dusk or nighttime using live fire to confirm
-
Zero Distance: For most setups, a 25-yard zero works well for the green laser and daylight testing. For the IR laser, aim to zero between 36 and 50 yards, especially if using high-mounted optics or bridge-style dual tubes. This helps ensure better alignment across usable night vision ranges.
💡 Pro Tip: Always confirm zero after detaching and remounting the unit. Even with a solid QD system, minor shifts can occur under hard use, sling tension, or suppressed recoil. Re-zero periodically if you’re running high-volume night drills or moving the RIP-3C between rifles.
Final Verdict: Should You Buy?
| Best For | Night Vision Rifle Builds, Hog & Predator Hunting, Civilian Training, Defensive Use |
| Laser Class | Green Visible Laser + Class 1 IR Pointer + VCSEL IR Illuminator |
| Mounting | Factory QD 1913 Picatinny Mount (Return-to-Zero, Tool-Free) |
| Key Feature | Triple-Beam Output: Visible Green, IR Pointer & IR Flood in a Compact, Rugged Housing |
If you need a compact, civilian-legal laser system that delivers true visible and IR capability—including a powerful VCSEL illuminator—in one rugged, budget-conscious unit, the RIX RIP-3C is one of the best options available. It’s built for suppressed carbines, night vision rifle setups, and real-world defensive use where reliability and intuitive controls actually matter.
Related AR-15 Laser Guides
Don’t forget to check out these posts to learn more about Lasers & AR-15s:
- Best Lasers for AR-15 (Ultimate 2025 Guide)
- Red vs Green Laser (Which is Best?)
- How To Choose A Laser
- Zeroing Your Laser On AR-15
❓ FAQ – RIX RIP-3C IR Laser Questions
Q: How does the RIP-3C activate?

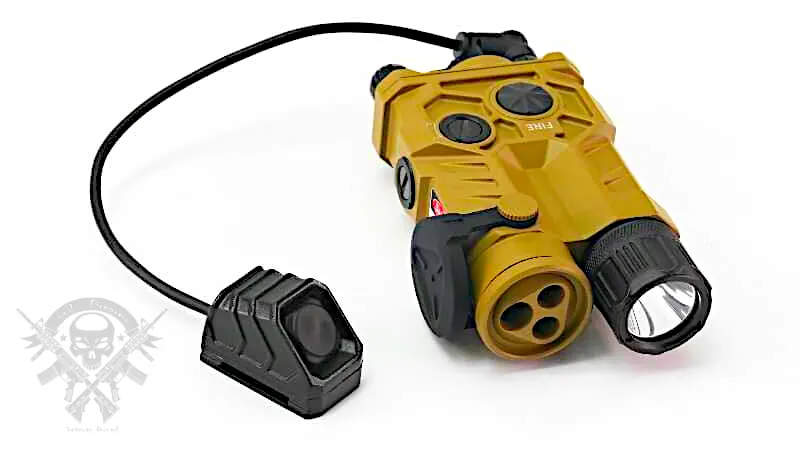

A: The RIP-3C features a top-mounted toggle switch for manual activation and a rear ModButton-compatible port for tape switch integration. You can run visible or IR lasers independently, depending on your control setup.
🧠 Tactical Insight: Many users assign IR-only activation to the remote pad and leave VIS laser control manual to prevent accidental white-light signature under nods.
Q: Is it hard to mount on an AR?
A: Not at all. It comes with a factory-installed tool-free QD Picatinny mount that locks down tightly on any standard 1913 rail. The mount offers repeatable zero and is robust enough for suppressed or SBR setups.
🛠️ Pro Tip: Clean your rail, lock it down tight, and confirm tension before zeroing. Even a small amount of flex can cause POI shift under sling stress or recoil.
Q: Is the visible laser daylight usable?
A: Yes. The green laser is bright enough to be visible out to 25–50 yards in full sun, and much farther in shaded conditions. At night, it can extend well past 300 yards, depending on the conditions.
🎯 Bonus Tip: Always zero the visible and IR lasers separately under their respective lighting conditions — even a slight offset can throw your POI off under nods.
Q: What battery does it use, and how long does it last?
A: The RIP-3C runs on a single CR123A lithium battery. The runtime is approximately 8+ hours on IR-only mode; however, using the VCSEL IR flood will draw more power and reduce battery life more quickly.
🔋 Real-World Insight: If you’re running both the IR pointer and IR flood, expect battery life to dip below 5 hours. Always carry a backup in your kit for extended ops.
Q: Is the RIP-3C duty-rated?
A: The RIP-3C is built from 6061-T6 aluminum, finished with Type III hard anodizing, and IP67-rated for water and dust resistance. It’s shock-resistant and field-proven, though not submersible like IPX8 systems.
💪 Hard Use Insight: While not mil-issued, the RIP-3C holds its own in real training environments and heavy-use civilian builds. If you’re not breaching doors in the rain, it’ll handle whatever you throw at it.
